Ranflex Metals is one of the best Manufacturer, Stockiest, Supplier, and exporter of Hot Finished S355J2H Mild Steel Circular Hollow Sections. This BS EN 10210 S355J2H Hot Finished CHS Tubes contains manganese content up to 1.60%, silicon & carbon 0.55%, and 0.22% respectively, and phosphorus and sulfur 0.030%. It also includes some portion of molybdenum content. The wall thickness of EN 10210 S355J2H Seamless Hot Finished Circular Hollow Section Tubing ranges from 0.5mm to 25mm and its 6000mm to 14000mm. Customers can grab these pipes as per their specifications.
Usually, Hot Finished EN 10210 S355J2H Circular Hollow Section is used between the temperature range of 500 Degree C to 800 Degree C and In continuous service, It can be used up to 899 Degree C. it can be used effectively at high elevated temperature. These Circular Hollow Sections are less resistant to air and water. Hot Finished EN 10210 S355J2H Circular Box Sections possesses high mechanical strength, and high tensile and yield strength. It possesses the best welding properties. These S355J2H Hot Finished Welded Structural Circular Hollow Sections are highly durable and are available at the most affordable price. This cannot be hardened further by the heat working process.
Hot Finished EN 10210 S355J2H Circular Hollow Section ERW Pipes are mostly used in the construction industry. It is mostly used in the construction of buildings, dams, etc. Hot Finished EN 10210 S355J2H Circular Hollow Section Circular Pipes are widely used in the marine industry and offshore oil drilling companies. It is also mostly used in the architecture industry.
|
Standard |
BS EN 10210 - Hot finished structural hollow sections of non-alloy and fine grain steels |
|
Grade |
S355J2H |
|
Sizes |
300 mm NB |
|
Wall Thickness |
0.5mm - 25mm |
|
Length |
6000-14000 mm |
|
Type |
Seamless/ Welded / ERW |
|
Dimensional Tolerances |
Thickness (All sizes +/- 10%) |
|
Packing |
In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End Capped Certification & supplementary test, Finishing & Identity Mark |
|
Surface Protection |
Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized |
| Steel Grade | % by mass maximum | |||||||
| Steel Name | Steel Number | C specified thickness (mm) | Si | Mn | P | S | N | |
| <_40 | > 40 <_ 120 | |||||||
| S355J2H | 1.0576 | 0.22 | 0.22 | 0.55 | 1.60 | 0.030 | 0.030 | - |
| Steel Grade | Minimum yield strength eH Mpa | Minimum tensile strength Rm Mpa | ||||||||
| Steel Name | Steel Number | Specified thickness in mm | Specified thickness in mm | |||||||
| <_16 | >16 <_40 | >40 <_63 | >63 <_ 80 | >80 <_100 | >100 <_120 | <_3 | >3 <_100 | >100 <_ 120 | ||
| S355J2H | 1.0576 | 355 | 345 | 335 | 325 | 315 | 295 | 510-680 | 470-630 | 450-600 |

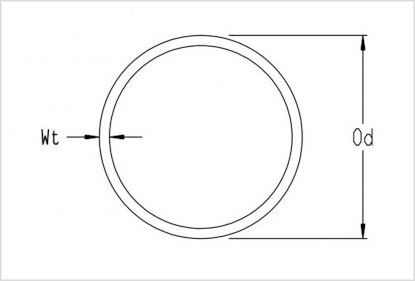

| Nominal Bore | Outside diameter | Thickness | Weight |
| mm | mm | mm | kg/m |
| 15 | 21.3 | 2.00 | 0.95 |
| 2.60 | 1.21 | ||
| 3.20 | 1.44 | ||
| 20 | 26.9 | 2.30 | 1.38 |
| 2.60 | 1.56 | ||
| 3.20 | 1.87 | ||
| 25 | 33.7 | 2.60 | 1.98 |
| 3.20 | 0.24 | ||
| 4.00 | 2.93 | ||
| 32 | 42.4 | 2.60 | 2.54 |
| 3.20 | 3.01 | ||
| 4.00 | 3.79 | ||
| 40 | 48.3 | 2.90 | 3.23 |
| 3.20 | 3.56 | ||
| 4.00 | 4.37 | ||
| 50 | 60.3 | 2.90 | 4.08 |
| 3.60 | 5.03 | ||
| 5.00 | 6.19 | ||
| 65 | 76.1 | 3.20 | 5.71 |
| 3.60 | 6.42 | ||
| 4.50 | 7.93 | ||
| 80 | 88.9 | 3.20 | 6.72 |
| 4.00 | 8.36 | ||
| 4.80 | 9.90 | ||
| 100 | 114.3 | 3.60 | 9.75 |
| 4.50 | 12.20 | ||
| 5.40 | 14.50 | ||
| 125 | 139.7 | 4.50 | 15.00 |
| 4.80 | 15.90 | ||
| 5.40 | 17.90 | ||
| 150 | 165.1 | 4.50 | 17.80 |
| 4.80 | 18.90 | ||
| 5.40 | 21.30 | ||
| 150 | 168.3 | 5.00 | 20.1 |
| 6.3 | 25.2 | ||
| 8.00 | 31.6 | ||
| 10.00 | 39 | ||
| 12.5 | 48 | ||
| 200 | 219.1 | 4.80 | 25.38 |
| 6.00 | 31.51 | ||
| 8.00 | 41.67 | ||
| 10.00 | 51.59 | ||
| 250 | 273 | 6.00 | 39.51 |
| 8.00 | 52.30 | ||
| 10.00 | 64.59 | ||
| 300 | 323.9 | 6.30 | 49.36 |
| 8.00 | 62.35 | ||
| 10.00 | 77.44 |
