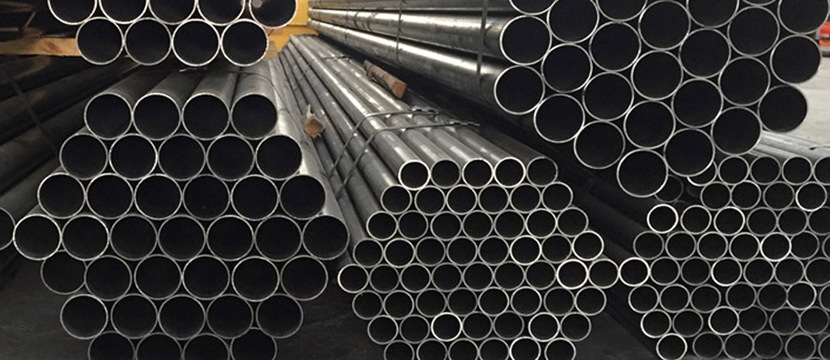

Ranflex Metals is one of the best manufacturers, Supplier, Stockiest, and exporter of Hot Finished EN 10210 S355J0H Circular Box Sections. These Hot Finished EN 10210 S355J0H Circular Hollow Section ERW Pipes usually contains manganese content up to 1.60%, 0.55% silicon content, phosphorus, and sulfur content up to 0.35%, and carbon content up to 0.22%. Its length ranges from 6000mm to 12000 / 18000mm, and its wall thickness starts from 1.8mm to 14.27mm. These Grade S355J0H Hot Finished Hollow Section Hexagonal Pipes are available in different sizes and shapes. However, one can get these hollow sections as per their specifications.
EN 10210 S55J0H Mild Steel Hot Finished Circular Tubes is highly resistant to the high-temperature environment as it can be used extensively at high elevated temperature. It is also highly resistant to general corrosion. These Hot Finished EN 10210 S355J0H Circular Hollow Section EFW Pipes possesses high tensile strength and is very easy to install. It is manufactured following international quality standards. These Hot Finished EN 10210 S355J0H Circular Hollow Sections are highly resistant to heat and have the best corrosion resistance to oxidation corrosion.
Grade S355J0H Hot Finished Welded Structural Circular Hollow Section is mostly used in machinery parts, screws, shafts, and fasteners. It is also used in food processing equipment and food packaging equipment. Hot Finished EN 10210 S355J0H Circular Hollow Sections are mostly used in heat exchangers and condensers. Hot Finished EN 10210 S355J0H Circular Hollow Section Pipes can be used in marine industries, seawater equipment, and offshore oil drilling companies.
|
Standard |
BS EN 10210 - Hot finished structural hollow sections of non-alloy and fine grain steels |
|
Grade |
S355J0H |
|
Sizes |
300 mm NB |
|
Wall Thickness |
6000 to 12000/18000mm |
|
Length |
6000-14000 mm |
|
Type |
Seamless/ Welded / ERW |
|
Dimensional Tolerances |
Thickness (All sizes +/- 10%) |
|
Packing |
In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End Capped Certification & supplementary test, Finishing & Identity Mark |
|
Surface Protection |
Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized |
| Steel Grade | % by mass maximum | |||||||
| Steel Name | Steel Number | C specified thickness (mm) | Si | Mn | P | S | N | |
| <_40 | > 40 <_ 120 | |||||||
| S355J0H | 1.0547 | 0.22 | 0.22 | - | 1.50 | 0.035 | 0.035 | 0.009 |
| Steel Grade | Minimum yield strength eH Mpa | Minimum tensile strength Rm Mpa | ||||||||
| Steel Name | Steel Number | Specified thickness in mm | Specified thickness in mm | |||||||
| <_16 | >16 <_40 | >40 <_63 | >63 <_ 80 | >80 <_100 | >100 <_120 | <_3 | >3 <_100 | >100 <_ 120 | ||
| S355J0H | 1.0547 | 355 | 345 | 335 | 325 | 315 | 295 | 510-680 | 470-630 | 450-600 |
| Nominal Bore | Outside diameter | Thickness | Weight |
| mm | mm | mm | kg/m |
| 15 | 21.3 | 2.00 | 0.95 |
| 2.60 | 1.21 | ||
| 3.20 | 1.44 | ||
| 20 | 26.9 | 2.30 | 1.38 |
| 2.60 | 1.56 | ||
| 3.20 | 1.87 | ||
| 25 | 33.7 | 2.60 | 1.98 |
| 3.20 | 0.24 | ||
| 4.00 | 2.93 | ||
| 32 | 42.4 | 2.60 | 2.54 |
| 3.20 | 3.01 | ||
| 4.00 | 3.79 | ||
| 40 | 48.3 | 2.90 | 3.23 |
| 3.20 | 3.56 | ||
| 4.00 | 4.37 | ||
| 50 | 60.3 | 2.90 | 4.08 |
| 3.60 | 5.03 | ||
| 5.00 | 6.19 | ||
| 65 | 76.1 | 3.20 | 5.71 |
| 3.60 | 6.42 | ||
| 4.50 | 7.93 | ||
| 80 | 88.9 | 3.20 | 6.72 |
| 4.00 | 8.36 | ||
| 4.80 | 9.90 | ||
| 100 | 114.3 | 3.60 | 9.75 |
| 4.50 | 12.20 | ||
| 5.40 | 14.50 | ||
| 125 | 139.7 | 4.50 | 15.00 |
| 4.80 | 15.90 | ||
| 5.40 | 17.90 | ||
| 150 | 165.1 | 4.50 | 17.80 |
| 4.80 | 18.90 | ||
| 5.40 | 21.30 | ||
| 150 | 168.3 | 5.00 | 20.1 |
| 6.3 | 25.2 | ||
| 8.00 | 31.6 | ||
| 10.00 | 39 | ||
| 12.5 | 48 | ||
| 200 | 219.1 | 4.80 | 25.38 |
| 6.00 | 31.51 | ||
| 8.00 | 41.67 | ||
| 10.00 | 51.59 | ||
| 250 | 273 | 6.00 | 39.51 |
| 8.00 | 52.30 | ||
| 10.00 | 64.59 | ||
| 300 | 323.9 | 6.30 | 49.36 |
| 8.00 | 62.35 | ||
| 10.00 | 77.44 |
